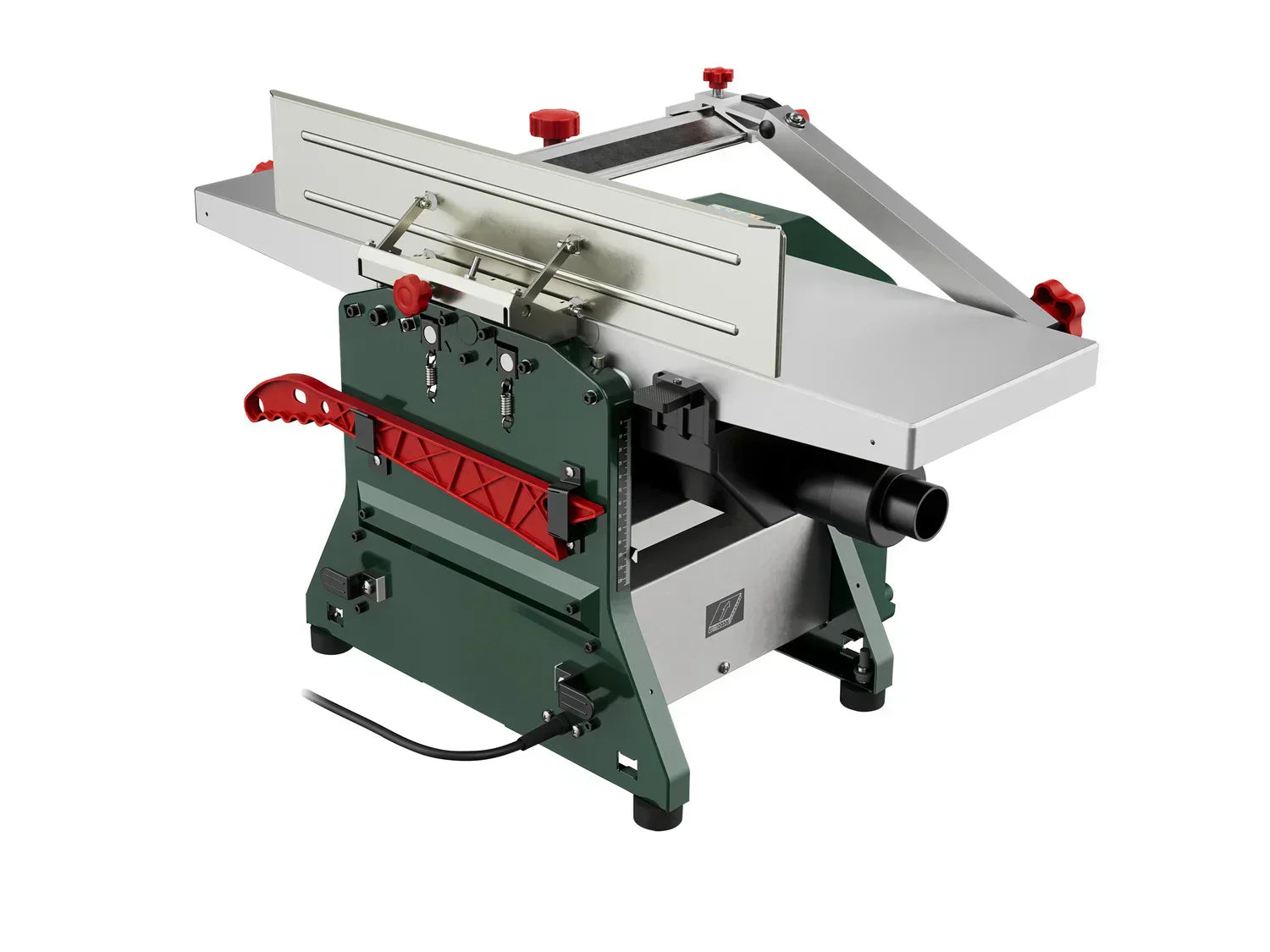

PK® PADM 1250 A1 Planer & Thicknesser – 1250W

Features

• Rotor size: approx. L 40 x Ø 54 mm

• Stator size: approx. L 40 x Ø 95 mm

• Number of blades: 2

Surface Planing

• Table size: approx. 740 x 210 mm

• Max planing width: 204 mm

• Max chip removal: 2 mm

Thicknessing

• Thicknessing table size: approx. 250 x 204 mm

• Max thicknessing width: 204 mm

• Max workpiece height/width: 120 mm / 204 mm

• Max chip removal: 2 mm

Included Accessories

• 1 x dust extraction adapter (compatible with NT-type vacuum systems)

• 1 x Allen key (size 4)

Technical Specifications

• Rated power: 1250 W (230 V)

• Feed speed: 6.3 m/min

• Spindle speed: 8,500 rpm

Materials

Aluminium, steel

Dimensions

• Planer & thicknesser: approx. 78 x 44 x 45.5 cm

• Power cable length: approx. 3 m

Weight

• Planer & thicknesser unit: approx. 20.213 kg

• Blade adjustment block: approx. 127.9 g

• Push stick: approx. 60.9 g
